5kWh Residential Energy Storage Battery | 51.2V Wall-Mounted

Name: 5kWh Residential Battery (51.2V Wall-Mounted)
Brand: TENGXIN ESS
SKU: RES-5KWH

Residential Battery 5kWh

Product Overview

5 kWh Wall-Mounted Residential Battery

51.2V LiFePO4 · Heating Film Optional

5kWh Residential Energy Storage Battery | 51.2V Wall-Mounted - TENGXIN ESS

5 kWh Capacity · 51.2V

LiFePO4 Battery Cells

Jikong Active Balancing BMS 100/200A

≥6000 Cycles @80% DOD

Optional Heating Film 20W

Wall-Mounted · 3-Year Warranty

Functions & Characteristics

Active Balancing BMS (Bluetooth)

Jikong 100/200A active balancing BMS with Bluetooth connection.

Long Cycle Life

Cycle life ≥6000 cycles @80% DOD.

Wide Operating Temperature

Operating temperature -20°C ~ +60°C.

Optional Heating Film

20W heating film with BMS-adjustable start/stop temperatures (≤5°C / ≥15°C).

Wall-Mounted Installation

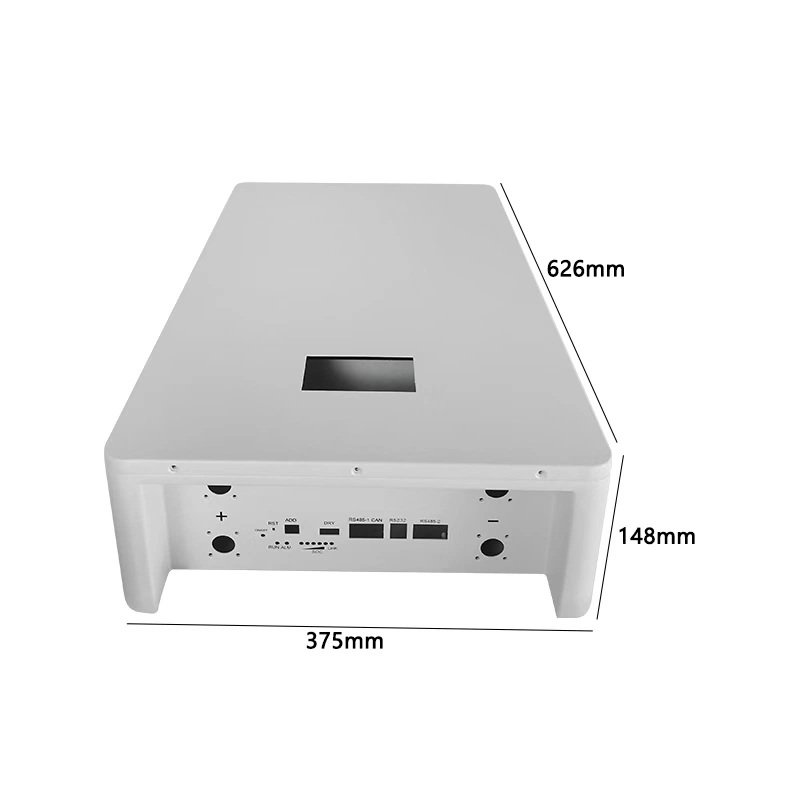

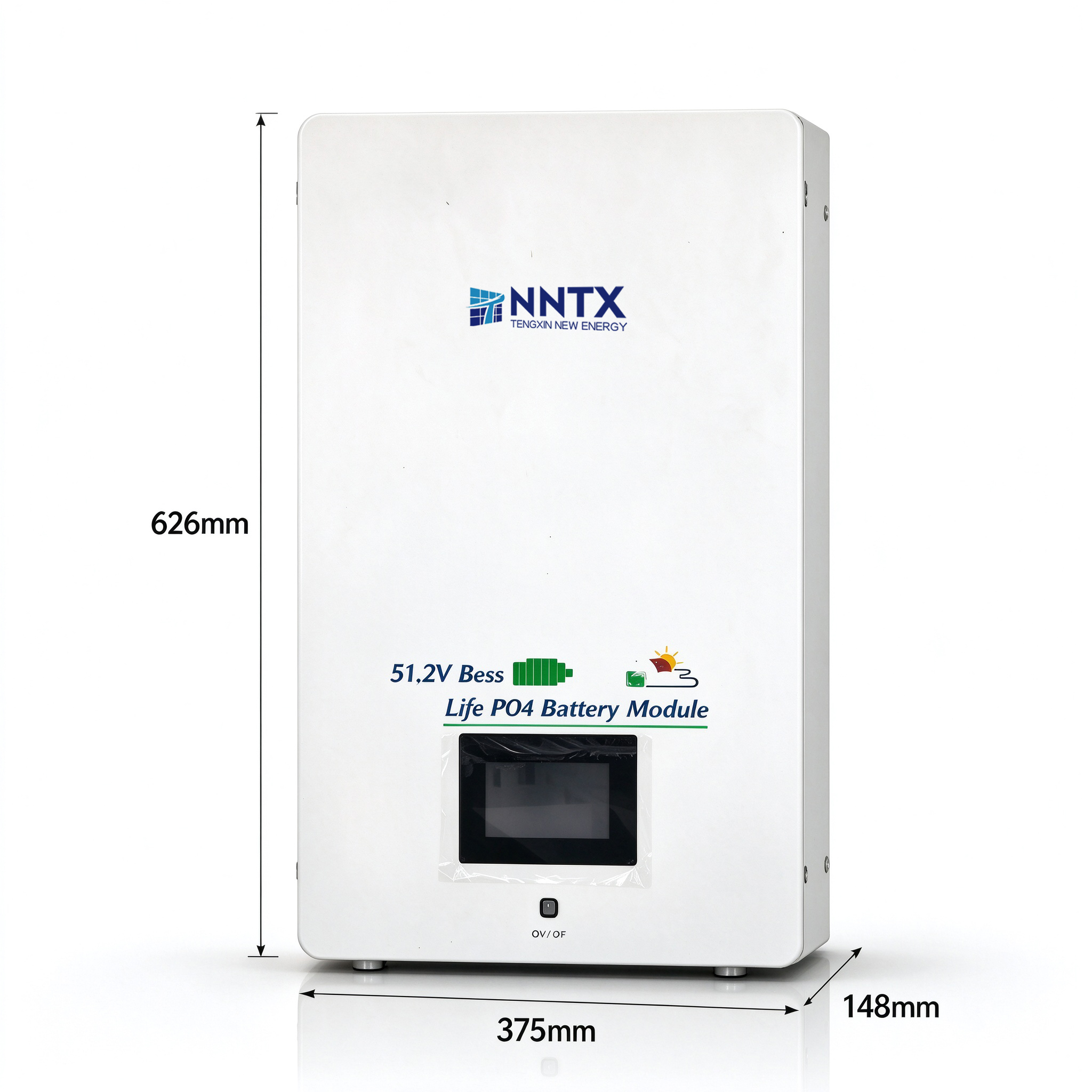

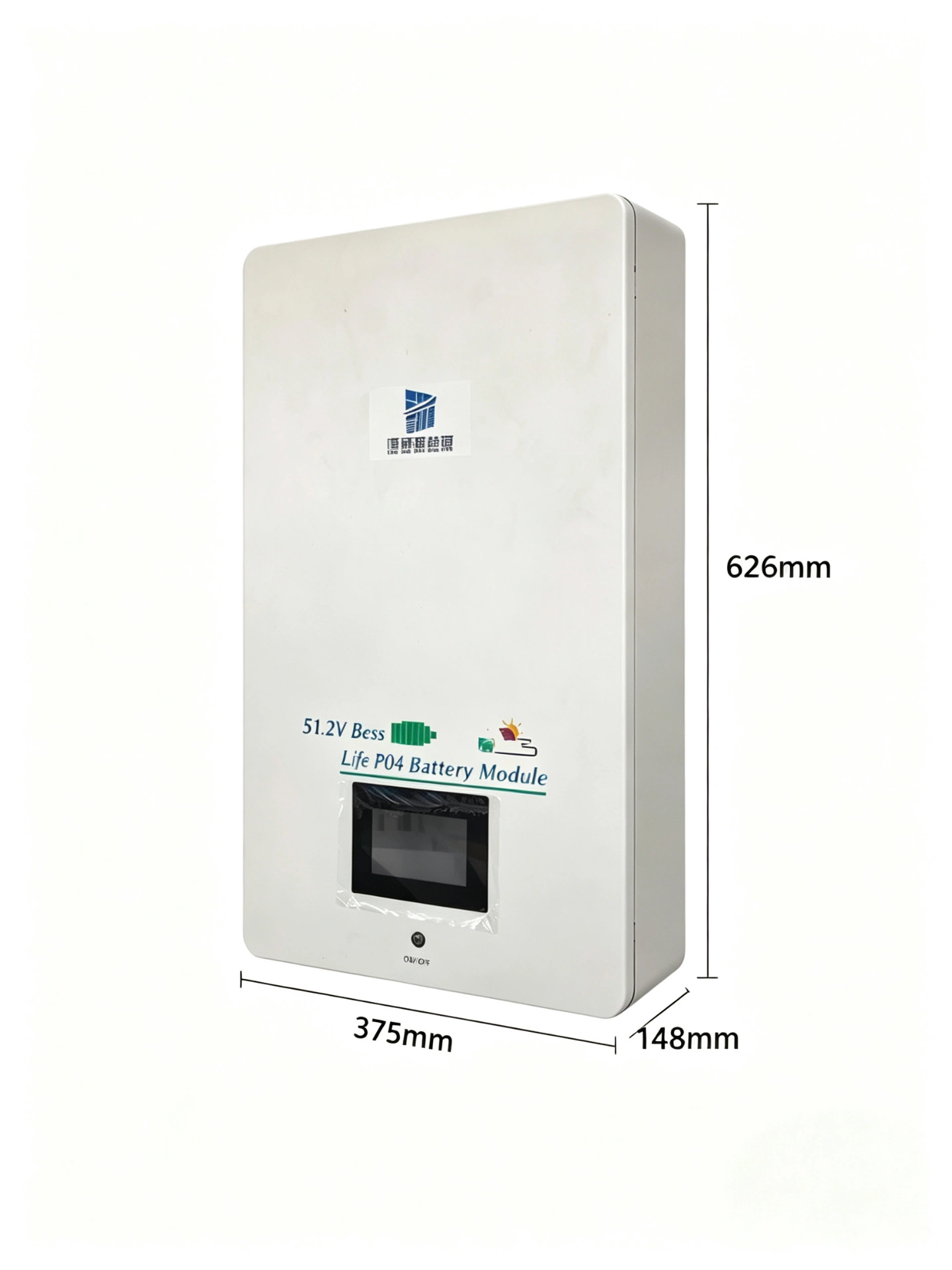

Slim 626×375×148 mm body for wall mounting.

Certified & Warrantied

CE / IEC62619 / UN38.3 certified, 3-year warranty.

Technical Data

Parameter	Specification
Product Name	5kWh Residential Energy Storage Battery (Heating Film Optional)
Rated Capacity	5kWh
Rated Voltage	51.2V
Battery Type	LiFePO4
Protection Board	Jikong Active Balancing BMS 100/200A
Heating Film Power	20W
Heating Film Start Temp.	≤5°C (BMS adjustable)
Heating Film Stop Temp.	≥15°C (BMS adjustable)
Cycle Life	≥6000 cycles @80% DOD
Operating Temperature	-20°C ~ +60°C
Protection Class	IP21
Dimensions (L×W×H)	626×375×148 mm
Weight	45kg
Certification	CE / IEC62619 / UN38.3 / MSDS
Installation Method	Wall-mounted
Warranty	3 Years

The above parameters are subject to the actual product.

Installation & Use

Wall-mounted installation, space-saving and tidy.

Bluetooth connection to the BMS for battery status monitoring.

Optional 20W heating film for low-temperature environments.

Intelligent Monitoring & Safety Protection

Built-in Jikong active balancing BMS with Bluetooth connection for battery status monitoring.

Comprehensive BMS protection extends battery life and ensures efficient output.

BMS Protection Functions

Overcharge Protection

Over-Discharge Protection

Overcurrent Protection

Over-Temperature Protection

Short Circuit Protection

Active Cell Balancing

Qualifications & Certifications

CE Certification

IEC62619

IEC 62619 Safety Certification for Lithium Batteries

UN38.3

UN 38.3 Transport Test for Lithium Batteries

MSDS

Material Safety Data Sheet
